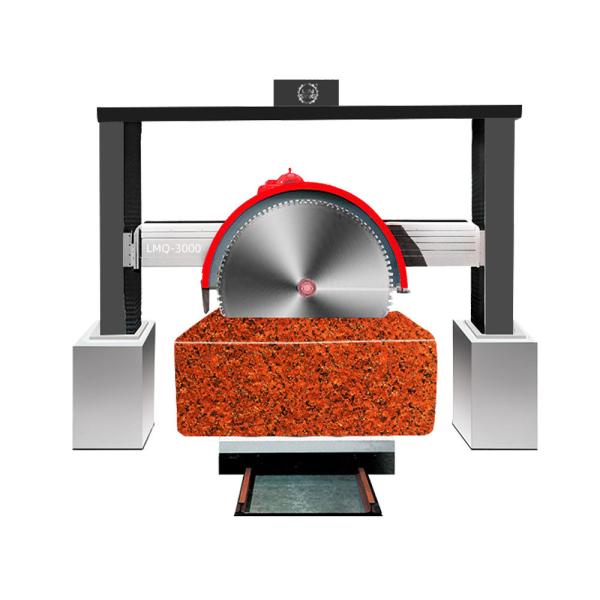

LINSING Gantry Stone Cutter Heavy Duty Block Cutting Machine for Natural Stone 9000 kg

Name: LINSING Gantry Stone Cutter Heavy Duty Block Cutting Machine for Natural Stone 9000 kg
Brand: LINSING
Price: 22 USD

China LINSING Gantry Stone Cutter Heavy Duty Block Cutting Machine for Natural Stone 9000 kg factory

Applicable Industries : Other, Stone Industry

Showroom Location : None

Condition : New

Type : Stone Cutting Machine

Use : Granite

Production Capacity : high

Place of Origin : Fujian, China

Brand Name : LINSING

Voltage : 380V

Power : 30KW

Dimension(L*W*H) : as to machine details

Weight : 9000 kg

Warranty : 1 Year

Key Selling Points : Long Service Life

Cutting thickness (max) : 1350mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

Product name : Gantry cutting machine

Keyword : Heavy Duty Block cutting machine

Application : Stone Marble Granite Quartz Sandstone

Function : Cut Block

Control system : PLC(imported Brand)

Usage : Wet use

Feature : High Efficiency Low Cost

Color : Customer's Request

Blade diameter : 1000-3000mm

Max Cutting Length : 3200mm

Packaging Details : The outer package is wooden box or wooden frame, and the inner package is plastic film.

Port : Shanghai, Shenzhen, Ningbo, Xiamen, etc

Supply Ability : 25 Set/Sets per Month Gantry cutting machine

Price : $22,000.00/sets 1-4 sets

Contact Now

Gantry Cutting Machine For Block Cutting

Gantry cutting machine mainly used for cutting marble, granite, bluestone, tombstone and so on.

Product Features:

This types of sawing machine (gantry saw machine) is composed of beams and composite drag board system, with the method of dragging plate up and down movement to realize longitudinal feed, dragging plate beam yan about motion to realize transverse feeding, main motor drives the saws for cutting stone material, the type of disk saw machine structure is simple, compact, low cost, high efficiency, wide applicable scope, is the most common stone machine, Therefore, it has been widely used in stone industry.
1. Crossbeam lift structure(up&down),V-shape that can achive a precise and stable cutting.
2. main spindle box move side to side (x-axis) along the cross beam.
3. Imported frequency convter is equipped and stepless speed adjusting is available.
4. Mechanotronic design &PLC controlling systerm for an easy and user-friendly operation.
5. Workbench can rotate 360°.

Product specifications:

Model	Unit	LXLMQ-2200	LXLMQ-2500	LXLMQ-3000
Max. diameter of blade	mm	2200	2500	3000
Max. No. of blades	pc	3	1	1
Recommended Blade Combination	mm	2200 1600 940	2500	3000
Recommend saw blade thickness	mm	6.5/7.2/8.0	8/8.5/9.0	8.0/9.0/9.5
Main motor power	KW	30	30	37
Table dimensions(L*W)	mm	3200*2000	3000*2000	2500*2000
Max. cutting size(LWH)	mm	32002000950	300020001100	250020001350
Overall dimensions(LWH)	mm	66006004800	660060004800	700047006000
Water consumption	m3/h	6	6	6
Approximate weight	Kg	9000	9500	9700
