Stone Block Cutting Machine for Granite Marble Slab Professional and Customizable Cuttin

Name: Stone Block Cutting Machine for Granite Marble Slab Professional and Customizable Cuttin
Brand: LINSING
Price: 19 USD

China Stone Block Cutting Machine for Granite Marble Slab Professional and Customizable Cuttin factory

Applicable Industries : Stone Industry

Showroom Location : None

Condition : New

Type : Bridge Saw

Use : For tombstone, thick plate, slab

Production Capacity : High efficiency

Place of Origin : Jiangxi, China

Brand Name : LINSING

Voltage : 380V, 50 Hz.

Power : 18.5KW

Dimension(L*W*H) : Max.7000*4800*5500mm

Weight : 7500 kg

Warranty : 1 Year

Key Selling Points : High-accuracy

Cutting thickness (max) : 450mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : High quality with cheap price

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Product name : Bridge Saw Machine

Keyword : Stone block cutting machine

Function : Stone Block Cutting

Usage : Granite Marble Stone Processing

Control system : PLC(imported Brand)

Feature : High Cutting Efficiency

Color : Customer Needing

Max. Cutting width : 2000mm

Max. Cutting Length : 3200mm

Blade diameter(max) : 2200mm

Packaging Details : Plastic film, wooden box and wooden frame

Port : Shanghai, Shenzhen, Ningbo, Xiamen, etc

Supply Ability : 30 Set/Sets per Month Bridge saw machine

Price : $19,000.00/sets 1-2 sets

Contact Now

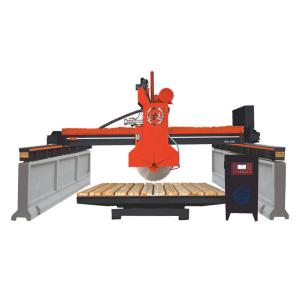

Bridge Cutting Machine For Block Cutting

Bridge cutting machine is ideal equipment for processing middle size stone blocks, such as tombstone, stone material handicraft, curb stone.

Product Features:

1: Adopts large span bridge stucture. The girder beam and guide rail are sealed with oil.
2: Automatic shift sharding. Feeding system adopts imported frequency converter, realize stepless speed cutting.
3: Equipped with a 360-degree rotating table.
4: Accurate positioning and high processing efficiency.

Product Specifications:

Model	Unit	PLC-1200	PLC-1600	PLC-1800	PLC-2200
Beam length(optional)	mm	6500	6200	6500	7000
Guide pillar diameter	mm	Φ140/180	Φ140/180	Φ140/180	Φ140/180
Max.blade diameter	mm	Φ1200	Φ1600	Φ1800	Φ2200
Worktable size	mm	3000*2000	3000*2000	3000*2000	3000*2000
Worktable rotation range	n°	0-90°	0-90°	0-90°	0-90°
Max.vertical stroke	mm	820	950	950	1150
Water consumption	m³/h	4	5	5	6
Power of main motor	kw	22	22	30	30
Total power	kw	27.2	27.2	38.2	38.2
Dimension(L×W×H)	m	6.44.84.4	6.24.85.1	6.54.85.3	7.04.85.5
Weight	kg	6100	7100	7300	7500
